350A 500A 600A dual mode automation mining arc welding machine DIESEL ENGINE-DRIVEN DC WELDER / AC GENERATOR

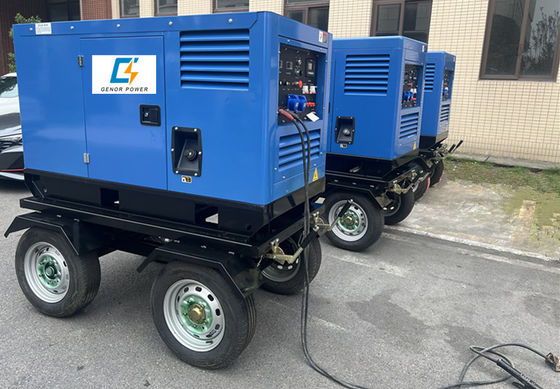

बड़ी छवि : 350A 500A 600A dual mode automation mining arc welding machine DIESEL ENGINE-DRIVEN DC WELDER / AC GENERATOR

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	GENOR POWER
प्रमाणन:	ISO , CE, EPA
मॉडल संख्या:	ONRWL400

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 सेट
मूल्य:	USD$4139 to USD$7225
पैकेजिंग विवरण:	लकड़ी का पैकेज / प्लाईवुड केस
प्रसव के समय:	20 दिनों के भीतर
भुगतान शर्तें:	टी/टी, एल/सी, वेस्टर्न यूनियन
आपूर्ति की क्षमता:	200/सेट प्रति माह

संपर्क करें

विस्तृत उत्पाद विवरण

प्रोडक्ट का नाम:	400A डीजल वेल्डर एसी जनरेटर	इंजन प्रकार:	औद्योगिक भारी शुल्क enigne
वेल्डिंग करंट:	400 एम्पीयर	वेल्ड वर्तमान सीमा:	20-400ए
वेल्ड वोल्टेज:	15 - 40V	शीतलन प्रणाली:	पानी ठंडा हुआ
साइकिल शुल्क:	60%	वेल्डिंग की प्रक्रिया:	स्टिक, मिग, टिग, आर्क गौजिंग
वेल्ड मोड:	सिंगल/डुअल	आवेदन:	निर्माण, खनन, पाइप वेल्डिंग
प्रमुखता देना:	diesel engine welding machine 600A , dual mode arc welder generator , mining welding machine 500A

350A 500A 600A Dual Mode Automation Mining Arc Welding Machine

DIESEL ENGINE-DRIVEN DC WELDER / AC GENERATOR

The Engine Driven Welders incorporate a diesel fueled engine to produce power for Stick, TIG, MIG and Flux-Cored welding. The diesel welder can perform high-quality welding on pipelines and other welding methods. The welder has been designed to operate in virtually all locations, from very hot to cold climates. It is ideal for high-quality welding and as a dependable source of power.

The diesel welding plant adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology, enjoying excellent dynamic quality and welding performance within full voltage/current regulation range.

Welding Specifications

Welding Current Range (A)	20A - 400A
Rated welding current	400A
Operating voltage	> 36V
No-load voltage	70V - 90V

Generator Output

Excitation Type	AVR Brushless Excitation
Frequency	50Hz
Phase	Three Phase \| Single Phase
Output Voltage/Power	AC 380V/15Kw \| AC 220V/5Kw

Engine

Engine type	4 stroke, 4 cylinder, direct injection, heavy duty diesel engine
Fuel	Diesel

Technical Specifications

Rated welding current, (at Pn-60%), not more than - 400 A
Rated operating voltage, not less than - 36V
Welding current regulation limits, not less than - 60A, not more than - 400A
No-load voltage, not less than - 70V, not more than - 90V
Fuel tank capacity, not less than - 60L, not more than - 120L
Pump efficiency, not less than - 70%

Auxiliary Power Generator

Power, not more than - 4 kW
Rated voltage, (at 50 Hz), no more than - 230V

Engine Specifications

Engine type- diesel
Engine power, not less than - 30/40 kW/hp
Rotation speed, not more than - 1800 rpm
Engine cooling - liquid/air
Climatic version - N1

The trailer-chassis is designed for operation by vehicles having a traction device according to GOST 2349, electrical outlets according to GOST 9200, devices for attaching the safety chains of the trailer, as well as an additional rear and front stop to maintain in a horizontal position.

Additional Equipment

Ballast rheostat
Welding cables, an electrode holder, a welder's shield, a "Vector" type cutter length 510 mm are designed for manual cutting of steels with a thickness from 3 to 300 mm, a gas and oxygen reducer
Propane and oxygen hoses of 20 m each
Complete set of an extended set of tools for maintenance
Additional tool box
Preheating system for starting the welding unit at ambient temperature below -25°C
Shelters of the welding site from environmental influences
Power tools for machining edges of welded elements and welded joints
Light alarm
Automatic emergency protection system
Built-in auxiliary generator, - 220/380 V, to VA - 4-7, AC (for powering power tools and consumers with an active load - incandescent lamps, heaters, soldering irons)
A lamp for carrying out work at night
Tire pumping device
Electric fuel level indicator
Hour counter
Cables for remote start from an outside source
Device for drying electrodes
Anti-rollback stops, -2 pcs
Socket ONC- VN-1-7/30- P1
Spare wheel
