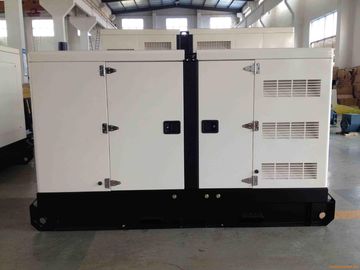

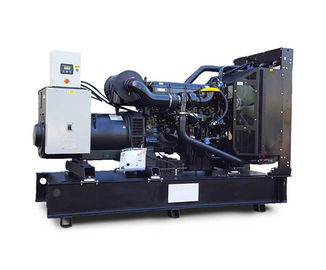

Silent Perkins1106A - 70TAG2 Engine 160kva Genset Diesel Generator 150kva Stamford AC Brushless
Quick Detail:
1. Perkins water cooled diesel engine: 1106A-70TAG2
2. Stamford AC Brushless, Self-Exciting alternator
3. Smartgen automatic control panel with ATS
4. Noise Level: 70dBA at 7m away
Specifications:
| Prime Power | 120KW/150KVA | Standby Power | 132KW/165KVA |
| Rated Speed | 1500RPM | Output Frequency | 50HZ |
| Phase | 3 | Rated Voltage | 400V |
| Engine Model | 1106A-70TAG2 | Alternator Model | UCI274F |
| Fuel Consumption of 100% load | 41L/H | Fuel Consumption of 75% load | 31L/H |
| Voltage Regulation Rate | ≤±1% | Random Voltage Rate | ≤±1% |
| Frequency Regulation Rate | ≤±5% | Random Frequency Variation | ≤±0.5% |
| Dimension (open type) | 2000×750×1250(mm) | Weight (open type) | 1270kg |
| Dimension(silent type) | 2680×900×1550(mm) | Weight (silent type) | 1530kg |
Diesel Engine
| Engine Model | 1106A-70TAG2 |
| Number of Cylinder | 6 |
| Cylinder arrangement | Vertical in-line |
| Cycle | Four Stroke |
| Aspiration | Turbocharged |
| Bore×Stroke (mm×mm) | 100×127 |
| Displacement (L) | 5.99L |
| Compression Ratio | 17.0:1 |
| Prime Power/Speed(KW/rpm) | 143/1500 |
| Standby Power/Speed(KW/rpm) | 178.8/1500 |
| Speed Governor | Mechanical |
| Cooling System | Water-cooled, 4°C Radiator As Standard, 50°C Is Optional |
| Speed Stability(%) | ≤5% |
| Total Lubrication System Capacity (L) | 19.0 |
| Coolant Capacity(without radiator) (L) | 41.0 |
| Fuel Consumption at 100% Load(g/kwh) | 41(at 1500RPM) |
| Starter Motor | DC12V |
| Alternator | AC12V |
Alternator Specifications
| Exciter Type | Brushless, Self-excited |
| Rated Output | 160kva |
| Rated Speed | 1500RPM |
| Rated Frequency | 50HZ |
| Phase | Three |
| Rated Voltage | 400V (Available with customer requirements) |
| Power Factor | 0.8 |
| Voltage Adjust Range | ≥5% |
| Voltage Regulation NL-FL | ≤±1% |
| Insulation Grade | H |
| Protection Grade |
IP21-23 |
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
